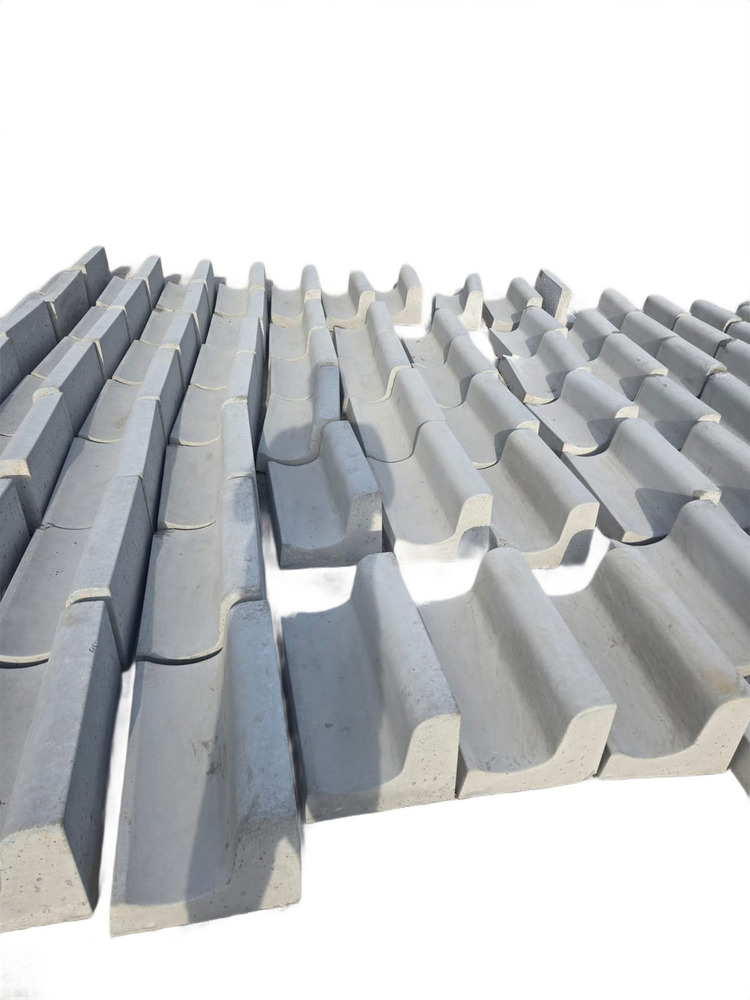

Kerb stone with Saucer Drain

Get a Price/Quote

MOQ : 100 Pieces

Kerb stone with Saucer Drain Specification

Pipe Type
Integrated saucer drain section (open profile)

Usage & Applications
Urban roads, walkways, commercial premises, drainage management, landscaping

Feature
Integrated kerb and drain, high load-bearing, weather resistant, precision finish

Material Grade
M30 Grade Concrete or as specified

Surface
Smooth/Semi-polished

Material
Precast Concrete

Product Type
Kerb Stone with Saucer Drain

Shape
Rectangular with integrated curved saucer profile

Colour
Grey/Custom as per requirement

Water Absorption
Less than 6% (as per IS: 15658)

Compressive Strength
Greater than 30 MPa

Installation Method
Laid on compacted sand or mortar bedding

Application Area
Suitable for both pedestrian and vehicular areas

Lifespan
Over 30 years with proper installation

Edge Type
Chamfered edges for safety and drainage

Maintenance
Easy to clean and maintain

Resistance
Weather, abrasion, and chemical resistant

Finish
Anti-skid surface finish on drain channel

Environment
Eco-friendly, reusable, and recyclable

Kerb stone with Saucer Drain Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Kerb stone with Saucer Drain

A saucer drain with kerb stone is a precast concrete unit combining a U-shaped channel and a raised edge, primarily used to efficiently collect and divert surface water runoff along roads, parking lots, and walkways. These systems prevent waterlogging, reduce erosion, and protect infrastructure by directing water to designated disposal areas.

Key Uses and Applications:

Roadside Drainage: Installed alongside roads to quickly channel rainwater, preventing water accumulation that causes accidents and road degradation.
Parking Areas & Driveways: Directs water away from paved surfaces to prevent slippery, hazardous conditions.
Landscaping & Urban Development: Used in parks, residential layouts, and commercial areas to manage water flow and provide a neat, finished boundary.
Footpath & Pedestrian Areas: Separates sidewalks from roads while managing rainwater runoff.
Industrial Zones: Ensures proper drainage around factories and warehouses, reducing waterlogging and structural damage.

Advantages:

High Durability: Manufactured from high-strength concrete to withstand heavy-duty, long-term use and weather conditions.
Efficient Flow: The smooth, shallow design allows for fast water flow and reduces the risk of debris accumulation and clogging.
Easy Installation: Precast units ensure uniform size, shape, and quick installation in urban projects

Precast U Drain

Sizes

Channel Size (LxWxH mm)	Length (m)	Lid Cover Thickness (mm)
300 x 300 x 70	2	110
450 x 450 x 80	2	130
600 x 600 x 90	2	145

Our range of superior quality U drains Pipes is manufactured using advanced vertical cast automatic machine. These are fabricated as NP3 & NP4 and are constructed in different structures like plain type, Socket & Spigot type. Confirming to BIS 458/2005 Standard. Vibration Casting uses a high grade and low water cement ratio concrete giving a high strength to the end product. The concrete in the mould is compacted under the external surface.

Precast U-Shape Strom water drain is the solution for faster & smarter way of providing effective & efficient storm water surface drain.
When road is going in the gradient, our U Shape drain can be laid in the same gradient.
Even when road is kept at same level, water normally flows through its own hydraulic gradient.

Capitalise on this must-have Kerb Stone with Saucer Drain, designed to deliver a top-notch drainage solution for urban and commercial spaces. Featuring a gorgeous anti-skid, grey finish (custom colours available) with superb compressive strength over 30 MPa, this product ensures durability, safety, and style. The chamfered edges guarantee pedestrian-friendly use while integrated saucer drainage manages excess water efficiently. Weather, abrasion and chemical resistant, and eco-friendly, this hot deal comes with a lifespan exceeding 30 years, tailored for India's toughest environments. Perfect for roads, landscaping, and more!

Competitive Advantages & Application Scope

This Kerb Stone with Saucer Drain stands out with its integrated high-load capacity and precision finish-making it a prime choice for urban roads, commercial areas, walkways, and landscape drainage. Easy maintenance and an anti-skid surface set it apart in both safety and functionality. Its eco-friendly, reusable design, and robust M30 grade concrete construction ensure long-term reliability and sustainability for varied application settings.

Export Markets, Packaging & Delivery Details

With growing demand for our kerb stone solutions across Asia and the Middle East, we offer prompt valuation and dependable transport services globally. Each unit is packaged securely to prevent damage during shipment. Our efficient dispatch system ensures product delivery within 2-4 weeks, supported by commercial-grade packaging options suitable for both bulk and project-based orders. Dedicated customer support oversees transport and customs requirements for seamless international delivery.

FAQ's of Kerb stone with Saucer Drain:

Q: How is the Kerb Stone with Saucer Drain installed?

A: The kerb stone with saucer drain is typically installed on a compacted sand base or mortar bedding, ensuring stability and optimum performance in managing water drainage.

Q: What are the main benefits of its anti-skid surface finish?

A: The anti-skid surface provides enhanced safety by reducing the risk of slips, making it ideal for both pedestrian walkways and vehicular areas, especially in wet or slippery conditions.

Q: Where can I use this product effectively?

A: It's suitable for a range of areas, including urban roads, commercial premises, pavements, landscaping projects, and locations requiring efficient water drainage and robust edge protection.

Q: What makes the maintenance process easy for this kerb stone?

A: Its smooth or semi-polished surface makes cleaning straightforward, while the integrated drainage reduces the chances of waterlogging and related maintenance concerns.

Q: When can I expect delivery after placing an order?

A: Delivery is typically completed within 2-4 weeks, depending on quantity, location, and specific customisation requirements.

Q: What is the expected lifespan of the product under normal usage?

A: With proper installation and maintenance, the kerb stone has an expected service life of more than 30 years, thanks to its high-grade materials and weather-resistant properties.
